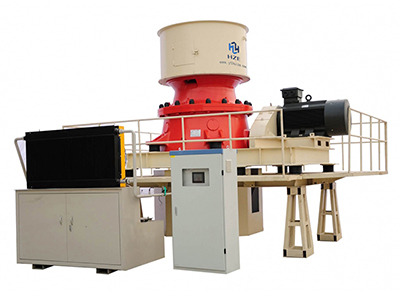

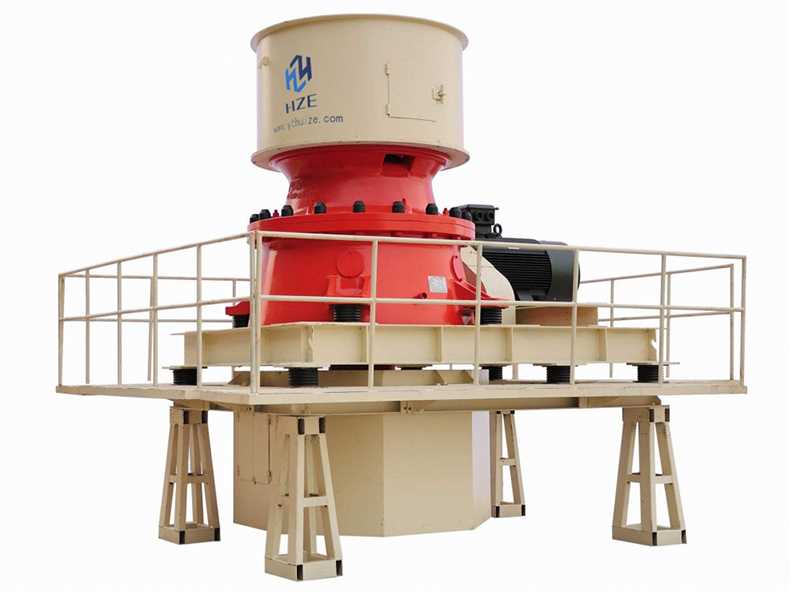

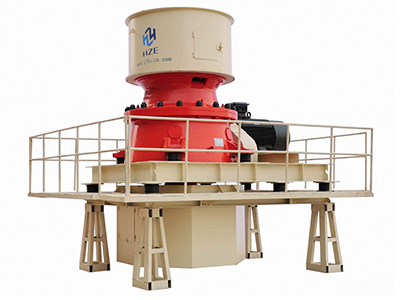

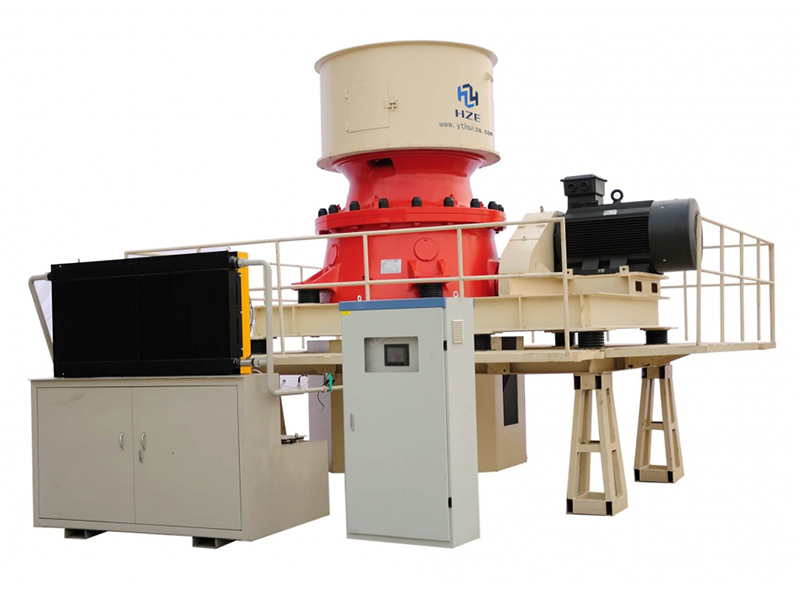

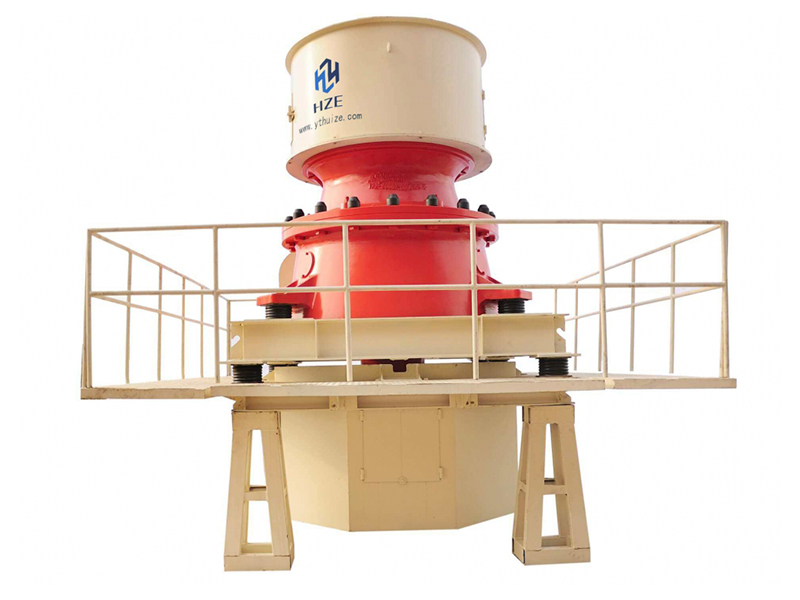

Hydraulic Cone Crusher

Single cylinder hydraulic cone crusher is not only highly reliable, but also highly efficient and economical in operation. The products made by hydraulic cone crusher are in good shape. Sngle cylinder hydraulic cone crusher is extensively used in mining and gravel aggregate industries, sutiable for crushing various materials of hard and above medium hardness. HZE offers cushers with differnt size of cushing area, meets client's needs to the largest extent and maintains high output. When the feeding is full, the hydraulic cone crusher can realize laminating crushing and make better materials for the product.

Features

Less parts consumption, low operation cost
Hydraulic cone crusher adopts hydraulic adjusting desgin to adjust the discharge opening in time with convenience. It works under full loaded condition, lowering parts consumption and operation cost.

Convenient chamber exchange
Clients can get different chamber by changing the line plate to meet the needs of primary and secondary crushing because the hydraulic cone crusher uses the same structure.

Easy operation and maintenance
We adopted hydraulic technology to realize overload protection, simplify the structure of crusher and reduce the weight. Maintenance and inspection will be fulfilled through the top of the crusher, making the maintenance easier.

Designed for large feeding inlet
The S-type single cylinder hydraulic cone crusher has large feeding design, matching with the primary jaw crusher and the crushing capacity. The crushing capacity is increased and the hydraulic cone crusher can replace the jaw crusher in primary crushing.

Application

Hydraulic cone crusher is one of the most frequently used mineral processing equipment, widely applied in mineral processing, construction materials, silicate and chemical industries. In small, medium and large scale mineral processing plants, the hydraulic cone crusher is mainly used for primary and secondary crushing to process metal ores such as gold, silver, bronze, lead, zinc, nickel, manganese, iron and molybdenum, also stones like rock, granite, limestone, barite, quartz, graphite, feldspar, fluorspar and so on.

Technical Parameters

Standard Type

Model	Chamber	Inlet Size (mm)	Max. Feeding Size (mm)	Discharging Size (mm)			Power (kW)
HCC100				Stroke 16	Stroke 22		90
	A	150	120	12~39	15~37
	B	130	105	10~33	11~31
	C	100	85	7~33	9~30
	D	40	32	5~31	6~29
HCC200				Stroke 18	Stroke 25		160
	A	220	180	18~35	22~30
	B	150	120	15~35	19~30
	C	80	60	9~35	12~30
	D	40	32	6~35	8~30
HCC300				Stroke 25	Stroke 32		250
	A	230	190	20~45	25~40
	B	150	125	17~45	20~40
	C	80	60	10~40	13~35
	D	40	32	6~40	8~35
HCC500				Stroke 25	Stroke 32	Stroke 40	315
	A	230	180	22~50	26~45	30~40
	B	150	125	19~48	22~43	26~38
	C	100	80	12~40	14~35	16~30
	D	50	40	8~30	10~25	12~20

Model	Stroke	Closed Side Discharge Outlet (mm)
		8	12	16	20	25	30	35	40	45
		Capacity(t/h)
HCC100	16	35~40	45~55	55~65	67~75	75~85	90~100	105~115
HCC100	22	45~50	55~65	65~75	75~90	85~105	100~125	115~135
HCC200	18	65~75	75~90	85~105	100~125	135~150	160~175	170~190
HCC200	25		90~110	110~130	125~155	160~180	185~210
HCC300	25	100~120	110~135	130~160	150~180	170~200	200~230	230~260	250~290	270~310
HCC300	32	110~135	130~150	160~200	180~220	200~250	230~280	260~310	280~320	300~340
HCC500	25	100~120	120~150	140~170	160~190	190~220	220~250	250~280	280~310	330~370
	32		150~170	170~200	200~230	250~270	280~300	310~340	370~420	430~500
	40		180~200	210~240	250~280	300~330	330~380	370~420	430~500

Specifications for Secondary Crushing Type

Model	Chamber	Inlet Size (mm)		Max. Feeding Size (mm)	Discharging Size (mm)			Power (kW)
HCCZ100					Stroke 16	Stroke 22		75~90
	A	250	210		35~65	35~60
	B	200	170		35~65	35~60
HCCZ200					Stroke 18	Stroke 25		110~160
	A	330	280		27~65	30~60
	B	250	210		25~60	28~55
HCCZ300					Stroke 25	Stroke 32		160~250
	A	380	320		28~73	32~69
	B	280	240		26~66	30~62
HCCZ500					Stroke 18	Stroke 25	Stroke 32	250~315
	A	500	420		50~80	55~75	60~70
	B	380	320		40~70	45~65	50~60

Model	Stroke	Closed Side Discharge Outlet (mm)
		35	40	45	50	55	60	65	70	75
		Capacity(t/h)
HCCZ100	16	135~150	145~165	155~175	165~185	175~190	180~205
HCCZ100	20	160~180	170~200	180~210	190~220	200~230	205~235
HCCZ200	18	160~190	180~210	200~230	230~250	250~270	270~300
HCCZ200	25	190~240	210~260	230~280	260~310	290~340	310~370
HCCZ300	25	250~300	290~340	320~350	350~380	380~410	410~440	440~470
HCCZ300	32	340~390	370~420	400~440	430~470	470~500	500~510	530~540
HCCZ500	18			300~350	330~380	370~420	400~450	430~480	460~510	500~550
	25				500~550	550~600	600~650	650~700	700~750	750~800
	32				650~700	700~750	750~800	825~875	900~950	950~1000
